I-Perkins Engine Compact Structure Low Noise Low Open Type Genset
Usayizi omncane, isakhiwo esihlangene
Adopt a closed-circulation
Ukumuncwa kokushaqeka okuphezulu
Intelligent parallel expansion
- Standard
- Ukusebenza
IZINGA
- I-ISO 8528: Isethi yejeneretha ye-AC eqhutshwa injini evuthayo yangaphakathi ephindaphindayo
- I-IEC 60034-1: Izidingo eziyisisekelo zobuchwepheshe zemishini kagesi ejikelezayo
- I-YD/T 502: Isethi yejeneretha yedizili yezokuxhumana
- I-GB/T 20136-2006: Indlela yokuhlola evamile yesiteshi samandla senjini evuthayo yangaphakathi
OKUHLE
- Usayizi omncane, isakhiwo esihlangene, ubuciko obuyinkimbinkimbi, ukubukeka okuhle. umsindo ophansi, izinkomba ezinhle kakhulu zokukhishwa.
- Isistimu yomjovo kaphethiloli oqondile ozimele, ukusetshenziswa kukaphethiloli okuphansi.
- Yamukela isistimu yokupholisa ejikelezayo evaliwe futhi ufake irediyetha esebenza kahle kakhulu, esengakwazi ukugcina ijwayelekile uma izinga lokushisa le-ambient liphezulu njengo-52℃.
- Uhlelo olusebenza kahle kakhulu lokumunca ukushaqeka kanye nesisekelo esiqinile, ukudlidliza okuphansi.
- Umklamo osezingeni, ukuguquguquka okunamandla kwezingxenye, kulula ukuzifaka futhi kulula ukuzinakekela.
- Ibhethri elingalungiswa, elinokuqalisa okusheshayo kokusebenza.
- Umsebenzi wokunweba ohlakaniphile ohambisanayo.
UKUSEBENZA
| Pirowu | Unit | Ukusebenza | ||
| Ukwehla kwemvamisa | % | ≤5 | ||
| Ibhendi yefrikhwensi yesimo esiqinile | % | ≤1.5 | ||
| Ibanga lokwehla lokusetha imvamisa ehlobene | % | ≥3.5 | ||
| Ibanga lokukhuphuka kwezilungiselelo zefrikhwensi ehlobene | % | ≥2.5 | ||
| Ukuchezuka kwefrikhwensi yesikhashana | 100% amandla okunciphisa kungazelelwe | % | ≤+12 | |
| Amandla angazelelwe | ≤-10 | |||
| Isikhathi sokuthola imvamisa | s | ≤5 | ||
| Ibhendi yokubekezelela imvamisa ehlobene | % | 2 | ||
| Ukuchezuka kwe-voltage yesimo esiqinile | % | ≤ ±2.5 | ||
| Ukungalingani kwamandla | % | 1 | ||
| Ukuchezuka kwe-voltage edlulayo | 100% amandla okunciphisa kungazelelwe | % | ≤+25 | |
| Amandla angazelelwe | ≤-20 | |||
| Isikhathi sokuvuselela i-voltage | s | ≤6 | ||
| Ukushintshwa kwe-voltage | % | 0.3 | ||
| Ibanga lokusetha i-voltage ehlobene | % | ≤ ± 5 | ||
| Izinga lokushintsha kwe-Voltage setting rate | %/s | 0.2~1 | ||
| Isici se-harmonic yocingo | I-THF | % | <2 | |
| Izici ezithinta ifoni | I-TIF | / | <50 | |
UKUHLELA
IMVELO ESEBENZA
Amandla amakhulu (i-PRP) amandla amakhulu iyunithi engakwazi ukusebenza ngokuqhubekayo ngomthwalo oguquguqukayo ngaphansi kwendawo evamile (ukucindezela komkhathi, umswakama ohlobene, izinga lokushisa elizungezile), futhi ivumele u-10% wokusebenza okugcwele ngokweqile kwehora elingu-1 njalo emahoreni ayi-12.
- Ukuphakama: ≤1000m (uma >1000m, ukulungiswa kwamandla kuyadingeka)
- Izinga lokushisa le-ambient: 40°C (uma >40°C, ukulungiswa kwamandla kuyadingeka)
- Umswakama ohlobene: ≤60%
- Uma izimo zokusebenza endaweni yesethi ekhiqiza udizili zingahlangabezani nemibandela engenhla, amandla okukhipha isethi yejeneretha kufanele alungiswe, futhi ekugcineni i-coefficient ilungiswe, sicela usithinte.

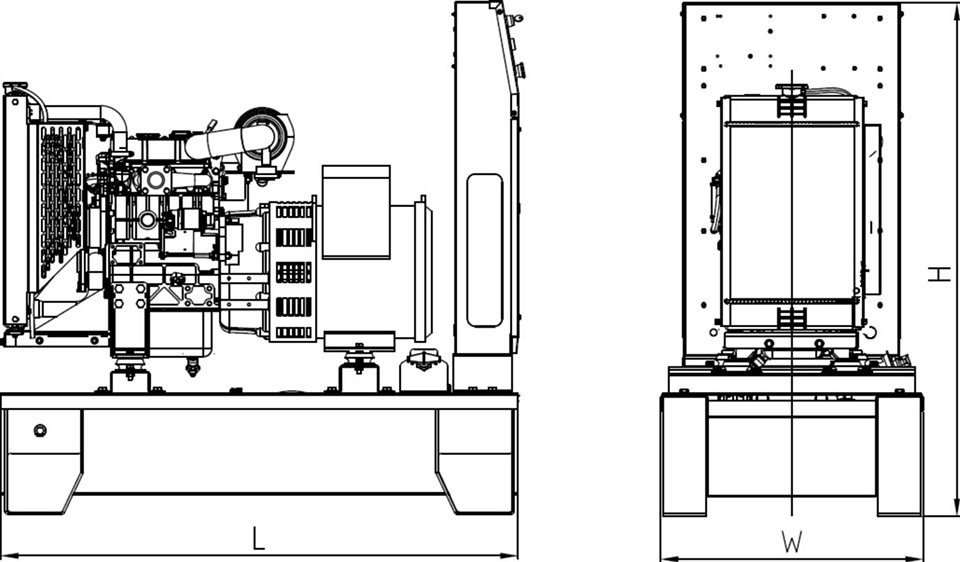

| Imodeli ye-genset | I-Genset Prime Power(kW) | I-Genset Standby Power(kW) | I-Fact Factor | Voltage Kulinganiselwe ngo- | imvamisa | Ubukhulu (L × W × H) (mm) | Isisindo (kg) | Imodeli Yenjini | Inani lama-Cylinders | I-Bore × Stroke (mm) | Ukudonswa (L)) | Ukusetshenziswa Kwamafutha(g/kW) | Speed | Ukuphola System | Indlela Yokuqalisa |
| Perkins Genset Open Style(400V) | |||||||||||||||
| ATYO-P7 | 7 | 8 | 0.8 | 400V | I-50HZ | 1320L × 670W × 1313H | 435 | 403A-11G1 | 3 | 77*81 | 1.131 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P10 | 10 | 11 | 0.8 | 400V | I-50HZ | 1420L × 670W × 1313H | 520 | 403A-15G1/G | 3 | 84*90 | 1.496 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P10G | 10 | 11 | 0.8 | 400V | I-50HZ | 1420L × 670W × 1313H | 520 | 403D-15G | 3 | 84*90 | 1.496 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P12 | 12 | 13 | 0.8 | 400V | I-50HZ | 1420L × 670W × 1313H | 520 | 403A-15G2 | 3 | 84*90 | 1.496 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P16 | 16 | 18 | 0.8 | 400V | I-50HZ | 1520L × 670W × 1313H | 575 | 404A-22G1 | 4 | 84*100 | 2.216 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P16G | 16 | 18 | 0.8 | 400V | I-50HZ | 1350L × 670W × 1313H | 575 | 404D-22G | 4 | 84*100 | 2.216 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P24 | 24 | 26 | 0.8 | 400V | I-50HZ | 1883L × 690W × 1313H | 810 | U-1103A-33G | 3 | 105*127 | 3.300 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P36 | 36 | 40 | 0.8 | 400V | I-50HZ | 1883L × 690W × 1342H | 910 | I-1103A-33TG1 | 3 | 105*127 | 3.300 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P48 | 48 | 53 | 0.8 | 400V | I-50HZ | 1883L × 690W × 1342H | 920 | I-1103A-33TG2 | 3 | 105*127 | 3.300 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P50 | 50 | 55 | 0.8 | 400V | I-50HZ | 2000L × 730W × 1397H | 985 | I-1104A-44TG1 | 4 | 105*127 | 4.400 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P64 | 64 | 70 | 0.8 | 400V | I-50HZ | 2000L × 730W × 1397H | 1045 | I-1104A-44TG2 | 4 | 105*127 | 4.400 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P66 | 66 | 72 | 0.8 | 400V | I-50HZ | 2000L × 730W × 1397H | 1045 | 1104C-44TAG1 | 4 | 105*127 | 4.400 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P80 | 80 | 88 | 0.8 | 400V | I-50HZ | 2098L × 730W × 1414H | 1150 | 1104C-44TAG2 | 4 | 105*127 | 4.400 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P108 | 108 | 120 | 0.8 | 400V | I-50HZ | 2464L × 830W × 1556H | 1615 | I-1106A-70TG1 | 6 | 105*135 | 7.010 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P120 | 120 | 132 | 0.8 | 400V | I-50HZ | 2600L × 764W × 1604H | 1730 | 1106A-70TAG2 | 6 | 105*135 | 7.010 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P140 | 140 | 154 | 0.8 | 400V | I-50HZ | 2400L × 996W × 1519H | 1740 | 1106A-70TAG3 | 6 | 105*135 | 7.010 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P160 | 160 | 176 | 0.8 | 400V | I-50HZ | 2400L × 996W × 1519H | 1750 | 1106A-70TAG4 | 6 | 105*135 | 7.010 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P180 | 180 | 200 | 0.8 | 400V | I-50HZ | 2573L × 1096W × 1680H | 1810 | 1206A-E70TTAG2 | 6 | 105*135 | 7.010 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P200 | 200 | 220 | 0.8 | 400V | I-50HZ | 2573L × 1096W × 1680H | 1860 | 1206A-E70TTAG3 | 6 | 105*135 | 7.010 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P240 | 240 | 264 | 0.8 | 400V | I-50HZ | 3100L × 1272W × 1993H | 3140 | 1506A-E88TAG5 | 6 | 112*149 | 8.800 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P280 | 280 | 308 | 0.8 | 400V | I-50HZ | 3100L × 1272W × 1993H | 3140 | 2206C-E13TAG2 | 6 | 130*157 | 12.500 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P320 | 320 | 350 | 0.8 | 400V | I-50HZ | 3100L × 1272W × 1993H | 3190 | 2206C-E13TAG3 | 6 | 130*157 | 12.500 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P360 | 360 | 400 | 0.8 | 400V | I-50HZ | 3298L × 1256W × 1926H | 3220 | 2506C-E15TAG1 | 6 | 137*171 | 15.000 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P400 | 400 | 440 | 0.8 | 400V | I-50HZ | 3298L × 1256W × 1926H | 3220 | 2506C-E15TAG2 | 6 | 137*171 | 15.000 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P480 | 480 | 528 | 0.8 | 400V | I-50HZ | 3584L × 1536W × 2011H | 4290 | Ingxenye #: 2806C-E18TAG1A | 6 | 145*183 | 18.130 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P520 | 520 | 560 | 0.8 | 400V | I-50HZ | 3584L × 1536W × 2011H | 4290 | 2806A-E18TAG2 | 6 | 145*183 | 18.130 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P600 | 600 | 660 | 0.8 | 400V | I-50HZ | 4251L × 1706W × 2360H | 6214 | 4006-23TAG2A | 6 | 160*190 | 22.921 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P640 | 640 | 700 | 0.8 | 400V | I-50HZ | 4251L × 1706W × 2360H | 6334 | 4006-23TAG3A | 6 | 160*190 | 22.921 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P720 | 720 | 800 | 0.8 | 400V | I-50HZ | 4950L × 2042W × 2298H | 7050 | 4008TAG1A | 8 | 160*190 | 30.561 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P800 | 800 | 880 | 0.8 | 400V | I-50HZ | 4950L × 2042W × 2298H | 7450 | 4008TAG2 | 8 | 160*190 | 30.561 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P800G | 800 | 880 | 0.8 | 400V | I-50HZ | 4950L × 2042W × 2298H | 7450 | 4008TAG2A | 8 | 160*190 | 30.561 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P900 | 900 | 1000 | 0.8 | 400V | I-50HZ | 4950L × 2042W × 2298H | 7450 | 4008-30TAG3 | 8 | 160*190 | 30.561 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P1000 | 1000 | 1100 | 0.8 | 400V | I-50HZ | 4904L × 1970W × 2405H | 9674 | 4012-46TAG0A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P1000G | 1000 | 1100 | 0.8 | 400V | I-50HZ | 4904L × 1970W × 2045H | 9674 | 4012-46TWG2A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P1100 | 1100 | 1200 | 0.8 | 400V | I-50HZ | 5150L × 2182W × 2482H | 11400 | 4012-46TAG1A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P1200 | 1200 | 1320 | 0.8 | 400V | I-50HZ | 5150L × 2182W × 2482H | 11400 | 4012-46TAG2A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P1320 | 1320 | 1450 | 0.8 | 400V | I-50HZ | 5320L × 2164W × 2535H | 11720 | 4012-46TAG3A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P1480 | 1480 | 1600 | 0.8 | 400V | I-50HZ | 6214L × 2135W × 2536H | 14050 | 4016TAG1A | 16 | 160*190 | 61.123 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P1600 | 1600 | 1800 | 0.8 | 400V | I-50HZ | 6214L × 2315W × 2536H | 14050 | 4016TAG2A | 16 | 160*190 | 61.123 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| ATYO-P1800 | 1800 | 2000 | 0.8 | 400V | I-50HZ | 5836L × 2200W × 2712H | 14087 | 4016-61TRG3 | 16 | 160*190 | 61.123 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| Perkins Genset Open Style(10500V) | |||||||||||||||
| I-ATYOH-P720 | 720 | 790 | 0.8 | 10500V | I-50HZ | 5425L × 2046W × 2430H | 7050 | 4008TAG1A | 8 | 160*190 | 30.561 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P800 | 800 | 880 | 0.8 | 10500V | I-50HZ | 5425L × 2046W × 2430H | 7450 | 4008TAG2 | 8 | 160*190 | 30.561 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P800 | 800 | 880 | 0.8 | 10500V | I-50HZ | 5425L × 2046W × 2430H | 7450 | 4008TAG2A | 8 | 160*190 | 30.561 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P900 | 900 | 1000 | 0.8 | 10500V | I-50HZ | 5694L × 1970W × 2431H | 13350 | 4008-30TAG3 | 8 | 160*190 | 30.561 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P1000 | 1000 | 1100 | 0.8 | 10500V | I-50HZ | 5694L × 1970W × 2431H | 13350 | 4012-46TAG0A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P1000G | 1000 | 1100 | 0.8 | 10500V | I-50HZ | 5694L × 1970W × 2431H | 13350 | 4012-46TWG2A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P1100 | 1100 | 1200 | 0.8 | 10500V | I-50HZ | 5903L × 2192W × 2554H | 13723 | 4012-46TAG1A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P1200 | 1200 | 1320 | 0.8 | 10500V | I-50HZ | 5720L × 2192W × 2554H | 13823 | 4012-46TAG2A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P1320 | 1320 | 1450 | 0.8 | 10500V | I-50HZ | 5741L × 2164W × 2642H | 14417 | 4012-46TAG3A | 12 | 160*190 | 45.842 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P1480 | 1480 | 1600 | 0.8 | 10500V | I-50HZ | 6648L × 2135W × 2645H | 15550 | 4016TAG1A | 16 | 160*190 | 61.123 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P1600 | 1600 | 1800 | 0.8 | 400V | I-50HZ | 6648L × 2135W × 2645H | 15550 | 4016TAG2A | 16 | 160*190 | 61.123 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
| I-ATYOH-P1800 | 1800 | 2000 | 0.8 | 400V | I-50HZ | 6720L × 2200W × 2722H | 16250 | 4016-61TRG3 | 16 | 160*190 | 61.123 | 1500 | Ukupholisa amanzi | Ukuqala kagesi | |
